Home Dosing gun SK-400W-80L-12V/24V/48V

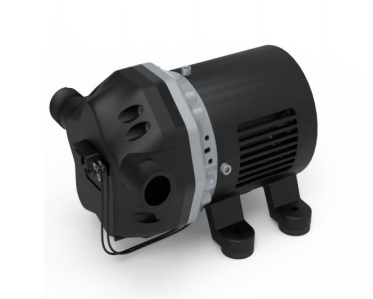

SK-400W-80L-12V/24V/48V

  • Self-Priming
  • Can run dry for long time
  • Suction:2.5-3M
  • Heat resistant 60°C
  • Can keep working for long time
Materialattachliquid:

Flow Rate:80.00 LPM

Add to Inquiry

Product detail

Various diaphragms can be replaced to extract different fluids

TPV valve diaphragmNitrile valve diaphragm

Fluoroplastic valve diaphragm

Material attaches the liquid:

PP/TPV/Viton-F      suitable for : Acid and alkaline chemical solution

PP/TPV/EPDM      suitable for : Adblue,light corrosion

Product specification

Voltage Flow Rate Head Control Method Max.Amps Setting Pressure Inlet/Outlet
DC 12V  60LPM 20M Pressure switch 46A 0.25Mpa 1.2" Pipe thread
DC 24V  70LPM 20M Pressure switch 25A 0.25Mpa 1.2" Pipe thread
DC 48V  70.5LPM 20M Pressure switch 12.5A 0.25Mpa 1.2" Pipe thread
