Home ‌metering diaphragm pump SK-300W-04SD12V24V48V

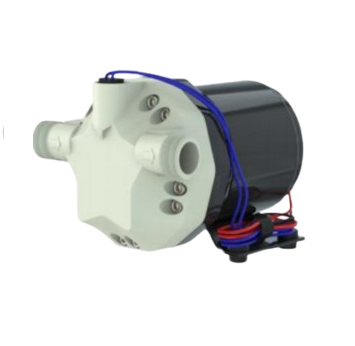

SK-300W-04SD12V24V48V

  1. Self-Priming
  2. Can run dry for long time
  3. Suction:3-4M
  4. Heat resistant 60°C
  5. Can keep working for long time
Call for pricing
Add to Inquiry

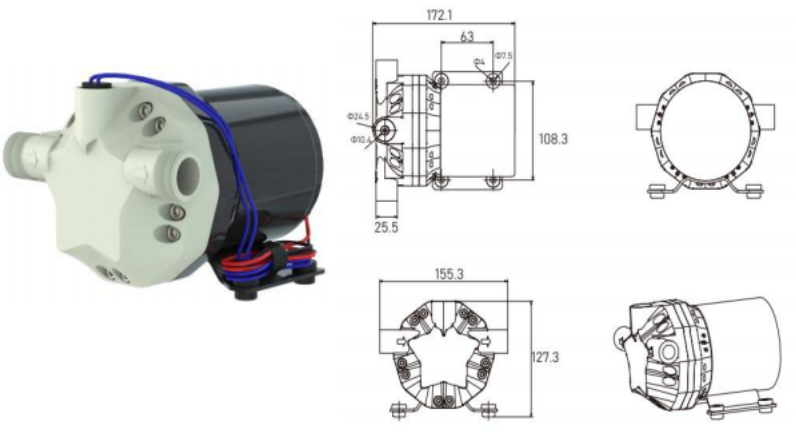

Product detail

Various diaphragms can be replaced to extract different fluids

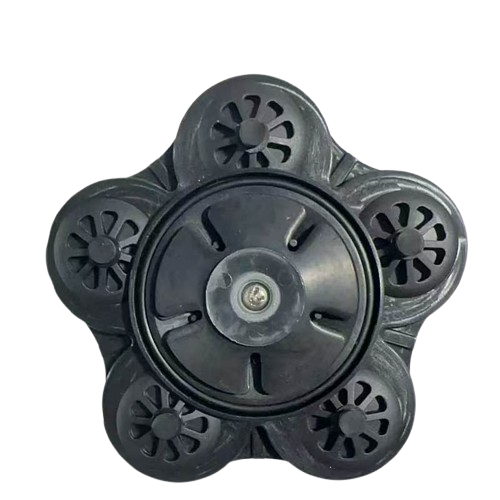

TPV valve diaphragm

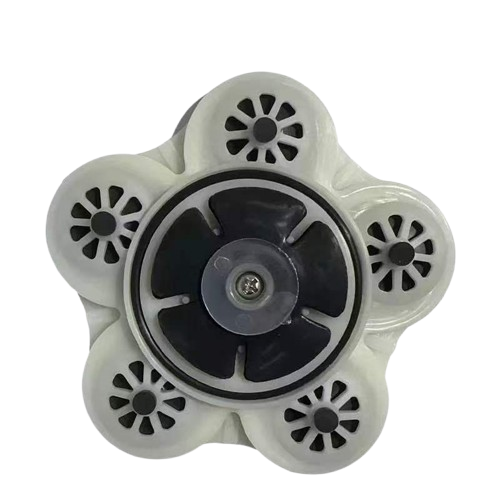

Nitrile valve diaphragm

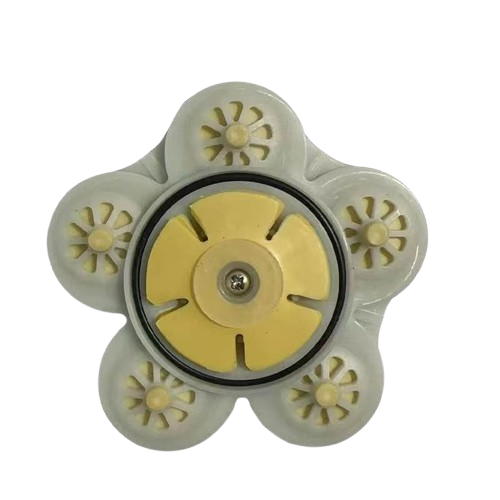

Fluoroplastic valve diaphragm


Material attaches the liquid:

PP/TPV/Viton-F      suitable for : Acid and alkaline chemical solution

PP/TPV/EPDM      suitable for : Adblue,light corrosion



Features:
  1. Self-Priming
  2. Can run dry for long time
  3. Suction:3-4M
  4. Heat resistant 60°C
  5. Can keep working for long time
Popular applications:

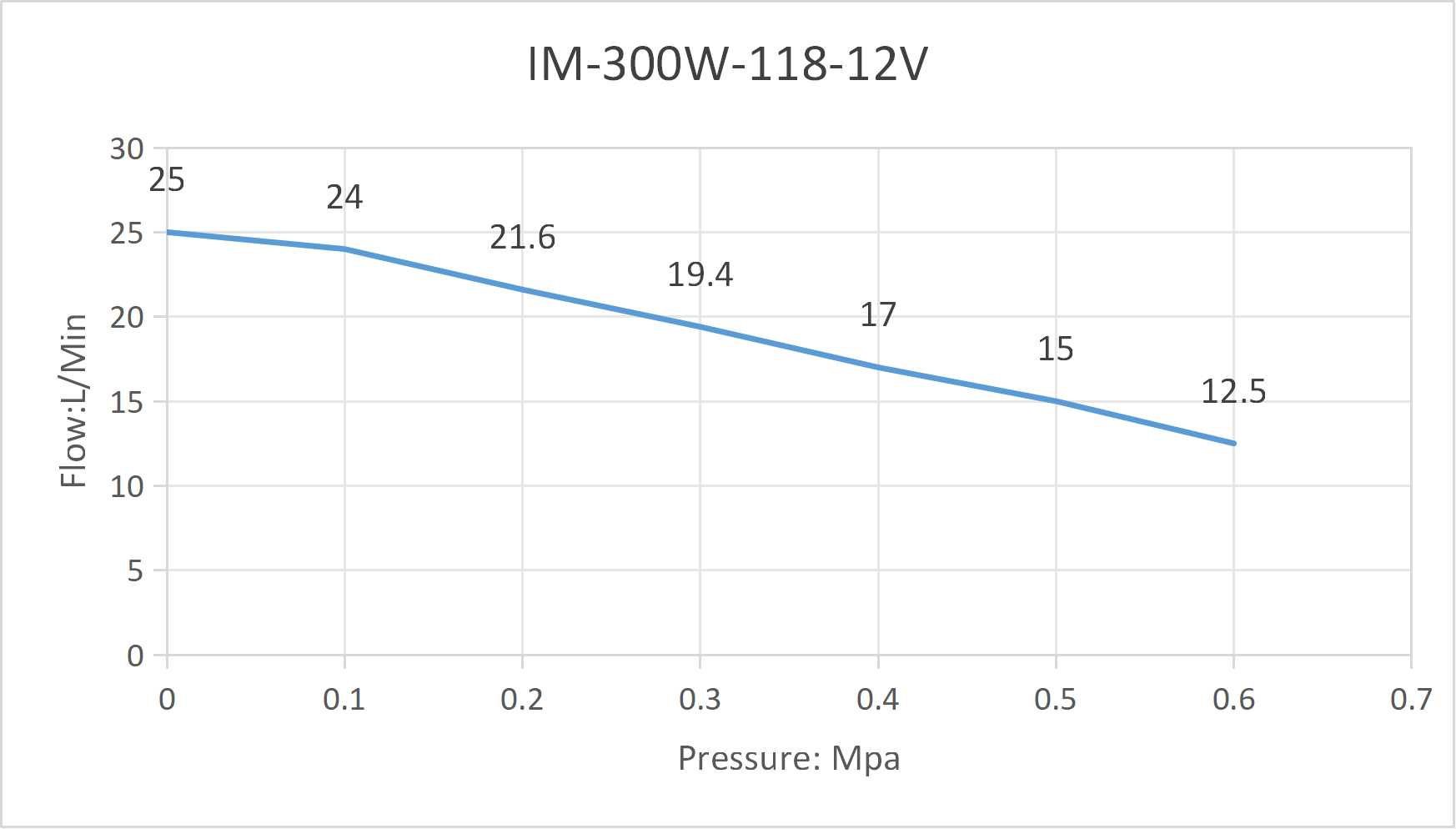

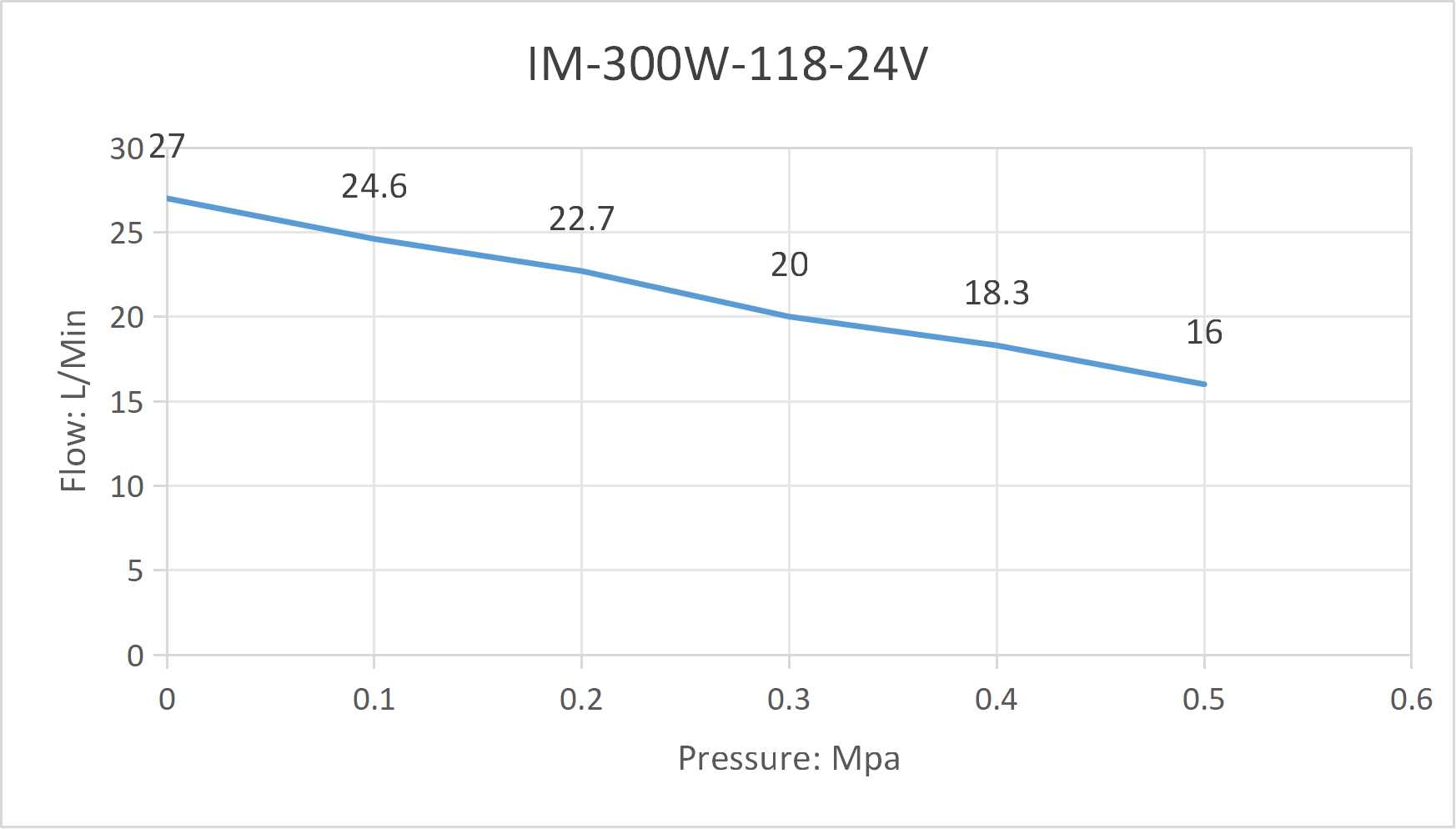

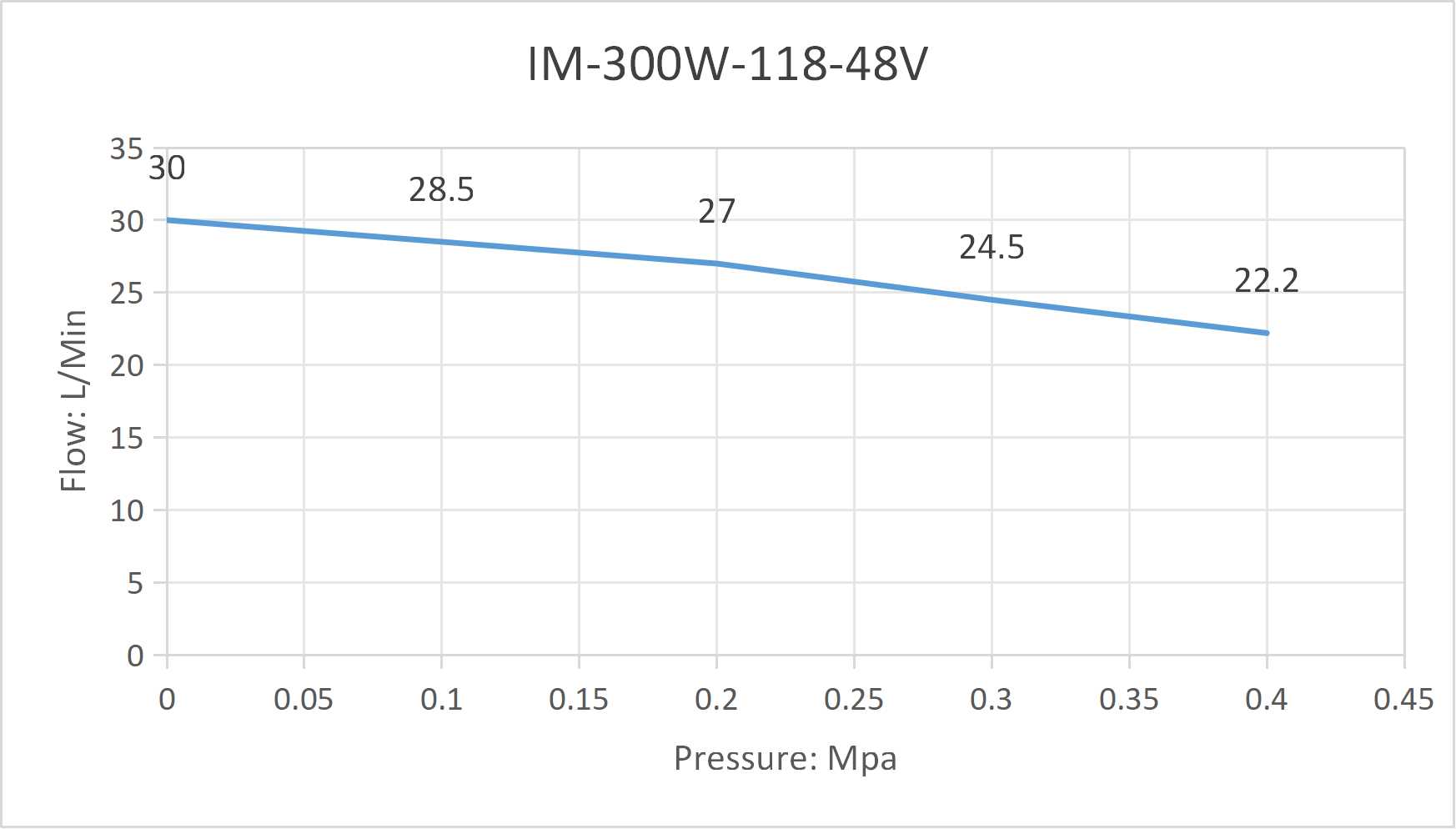

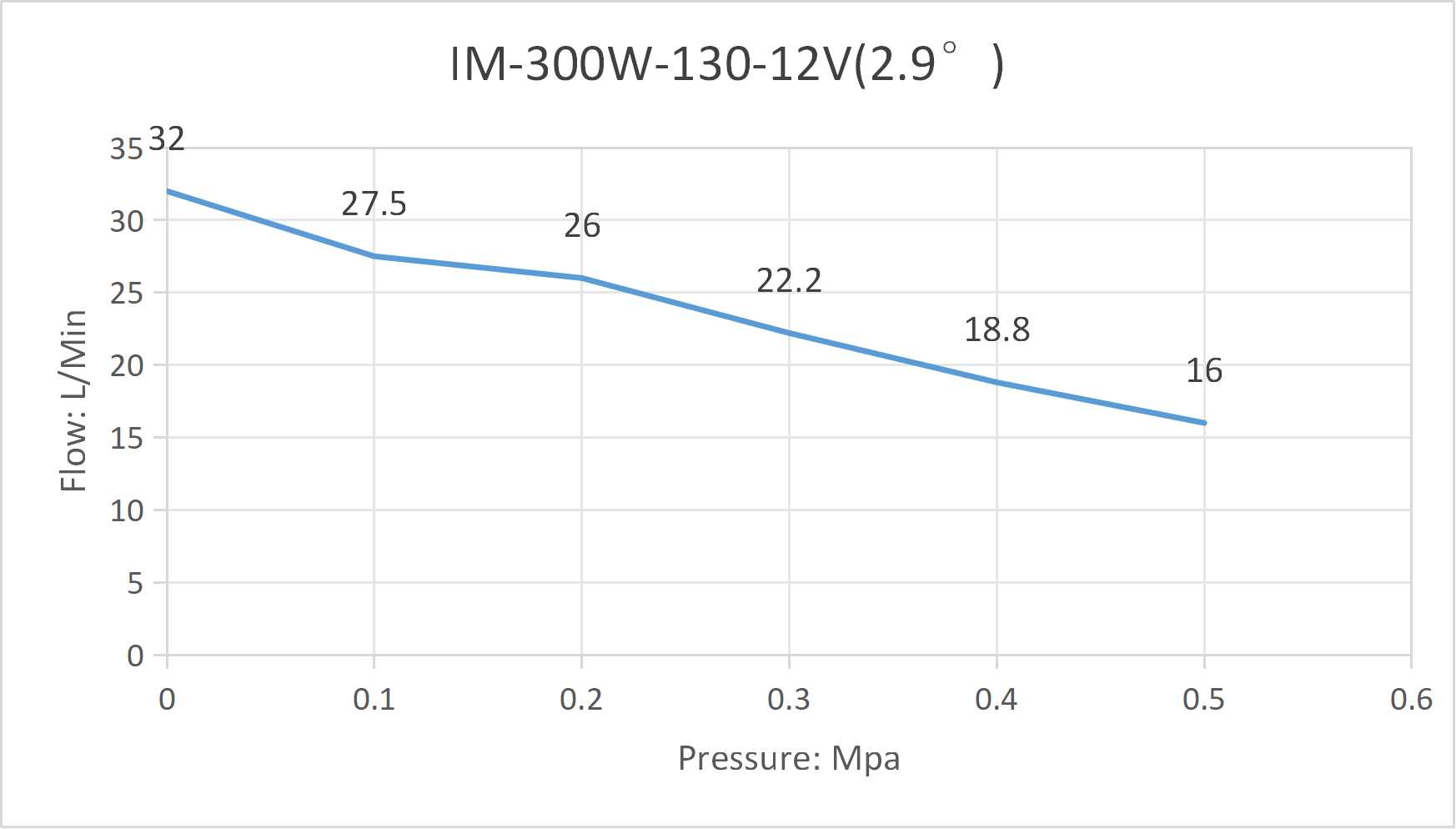

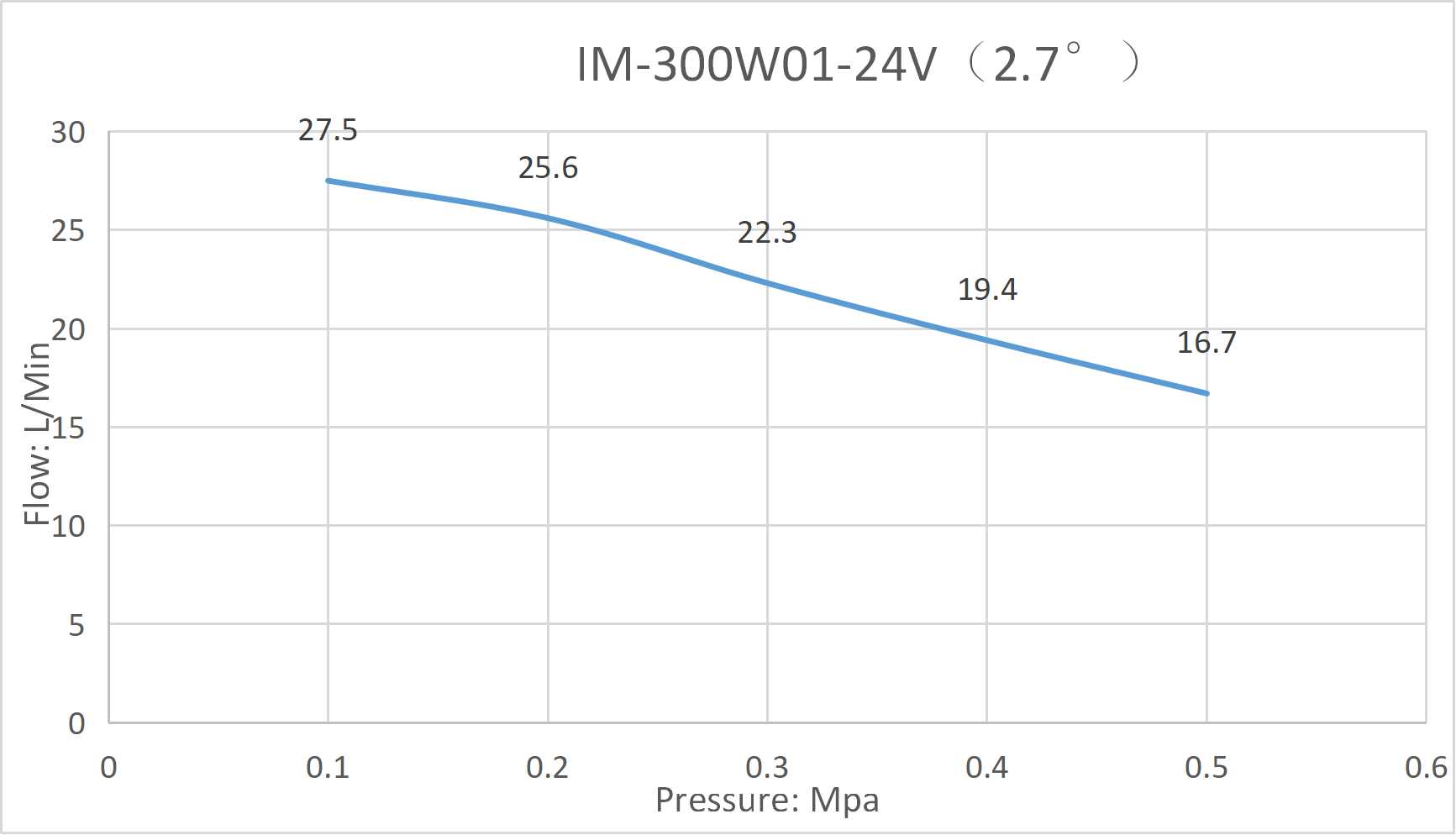

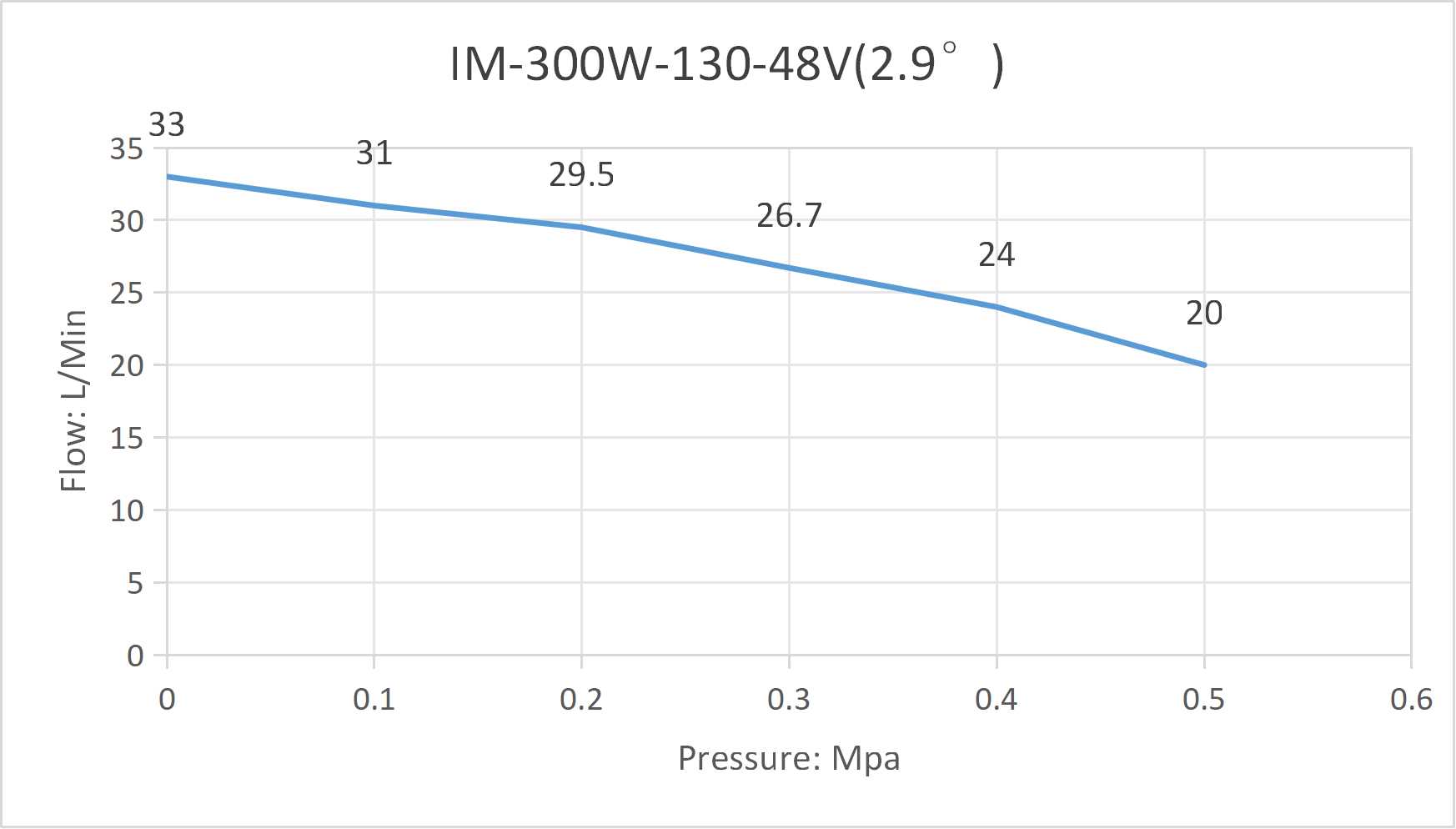

Product specification

Voltage Flow Rate Head Control Method Max.Amps Setting Pressure Inlet/Outlet
DC 12V 25LPM 100M Pressure switch 28A 1.0Mpa 3/4" Pipe thread
DC 24V 27LPM 100M Pressure switch 14A 1.0Mpa 3/4" Pipe thread
DC 48V 27LPM 100M Pressure switch 7A 1.0Mpa 3/4" Pipe thread
